ROPEX Resistron RES-5008 Resistron Controller:

RES-5008 | USA

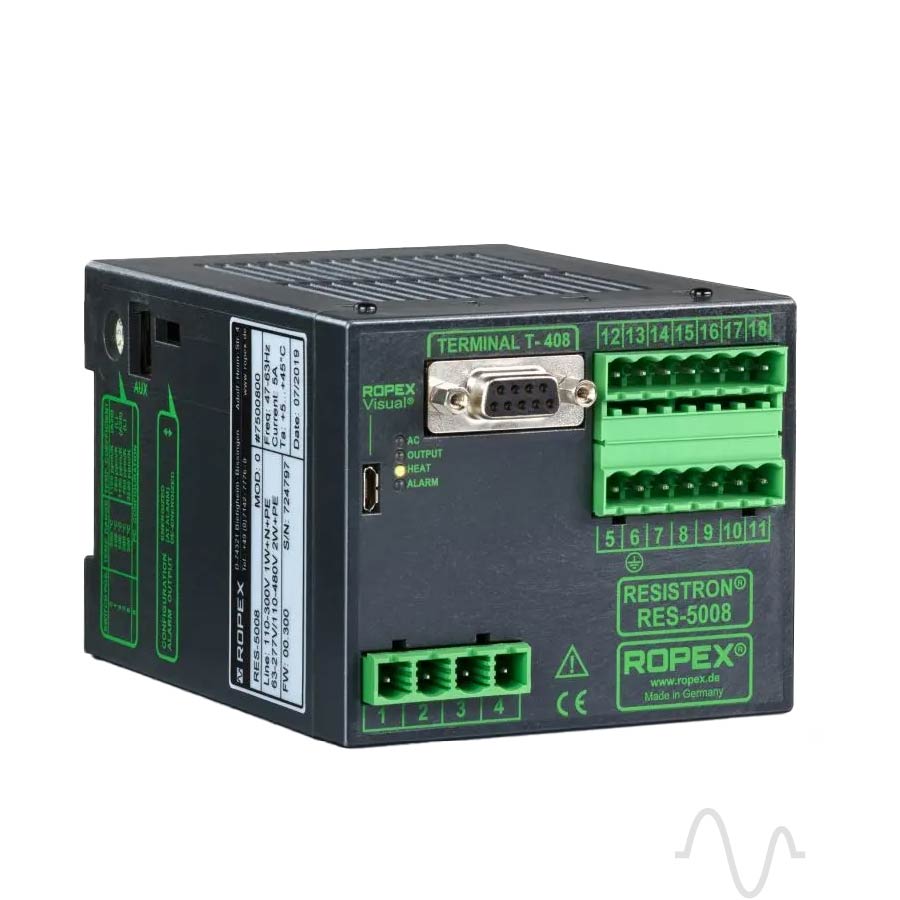

The ROPEX Resistron RES-5008 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5008 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers also provide a solution for an extensive range of heating applications:

• Heat-seal-bands and cutting-wires ... for hermetic sealing, and trimming of flexible films

• Zebra and intermittent heat-seal-bands ... for skip seals and packaging ventilation

• Impulse heating tools ... for activation of adhesives used in the bonding of non-thermoplastic materials

• Flexible or rigid impulse blades ... for scoring, cutting, and bending of thermoplastics

• Impulse heater coils ... for hot air bonding, and scoring of thermoplastics

• 2D and 3D contour heat-seal-elements ... for custom shaped heat-sealing, and heat-seal plus cuttings

The ROPEX Resistron RES-5008 contains the following features:

ROPEX RES-5008 Features:

• µC-Technology

• Separate terminal for operator display

• Automatic zero calibration (AUTOCAL)

• Automatic optimization (AUTOTUNE)

• Automatic frequency adjustment

• Large current and voltage range

• Alarm function with fault diagnostics

• 10VDC analog output for ACTUAL temperature

• Selectable temperature range (0...300°C, 0...500°C)

• 24VDC isolated control signals for START and PREHEAT

• Automatic configuration of secondary voltage and current ranges

• Automatic phase angle compensation

• Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex)




Ropex RES-5008 (V3) Operating Instructions:

Ropex RES-408 to RES-5008 Upgrade Instructions:

ROPEX RES-5008 Resistron Part Numbers:

Power Supply 110...480VAC:

• Ropex Resistron RES-5008/110...480VAC Part No. 7500800

Terminal T-408-1

• T-408-1 Part No. 885441

Sub-D connecting cable

• 2m Part No. 884202

• 5m Part No. 884205

• 10m Part No. 884210

Alternate industry names for RES-5008 controllers:

• RES-5008, RES5008, RES_5008, res-5008, res5008, res_5008

ROPEX Visual® for RES-5008:

ROPEX Visual® enables you to connect directly to the RES-5008 Resistron controller, giving you direct access to controller settings and error codes.

• Free Windows PC software.

• Communication via controller Micro-USB (PC USB to controller USB 2.0 micro-B).

• Display setpoint and actual temperatures
  in real time.

• Monitor and record controller operation.

• Review and edit controller configurable data.

• Password protected access .

ROPEX Visual® Documentation:

ROPEX Visual® Software:

Suitable for use with 5000 and 6000 series RESISTRON/CIRUS temperature controllers with USB port (ROPEX Visual®).

ROPEX Accessories and Modifications:

... available for the Ropex Resistron Heatseal Controllers:

• Current transformer: PEX-W3, PEX-W4, PEX-W5

• Current transformer high busbar: HCB-1

• Line filter: LF-06480, LF-35480, LF-10520, LF50520

• Booster: B-075400, B100400

• Temperature display, temperature meter: ATR-3, ATR-5

• Temperature adjustment, potentiometer : PD-3, PD-5

• Heatseal power transformer: PTR, TR-x

• Supervising fault current transformer: MSW

• Communication interface: CI-USB-1

• Temperature Sensor: TS-1

• Twisted Cable (RES voltage measurement cable): UML-1

• High Current Cable (RES current load cables): C-TC

ROPEX RES-5008 Factory Repairs and Upgrades:

We offer a large range of Ropex Resistron RES impulse heatseal temperature control units, to minimize your down time, and eliminate non-compliant repairs.

All Force Global controller repairs are performed by Ropex service technicians.
