ROPEX Resistron RES-5006 PROFIBUS Controller :

RES-5006 | USA

The ROPEX Resistron RES-5006 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5006 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers also provide a solution for an extensive range of heating applications:

  • Heat-seal-bands and cutting-wires ... for hermetic sealing, and trimming of flexible films

  • Zebra and intermittent heat-seal-bands ... for skip seals and packaging ventilation

  • Impulse heating tools ... for activation of adhesives used in the bonding of non-thermoplastic materials

  • Flexible or rigid impulse blades ... for scoring, cutting, and bending of thermoplastics

  • Impulse heater coils ... for hot air bonding, and scoring of thermoplastics

  • 2D and 3D contour heat-seal-elements ... for custom shaped heat-sealing, and heat-seal plus cuttings

The ROPEX Resistron RES-5006 contains the following features:

ROPEX RES-5006 Standard Functions:

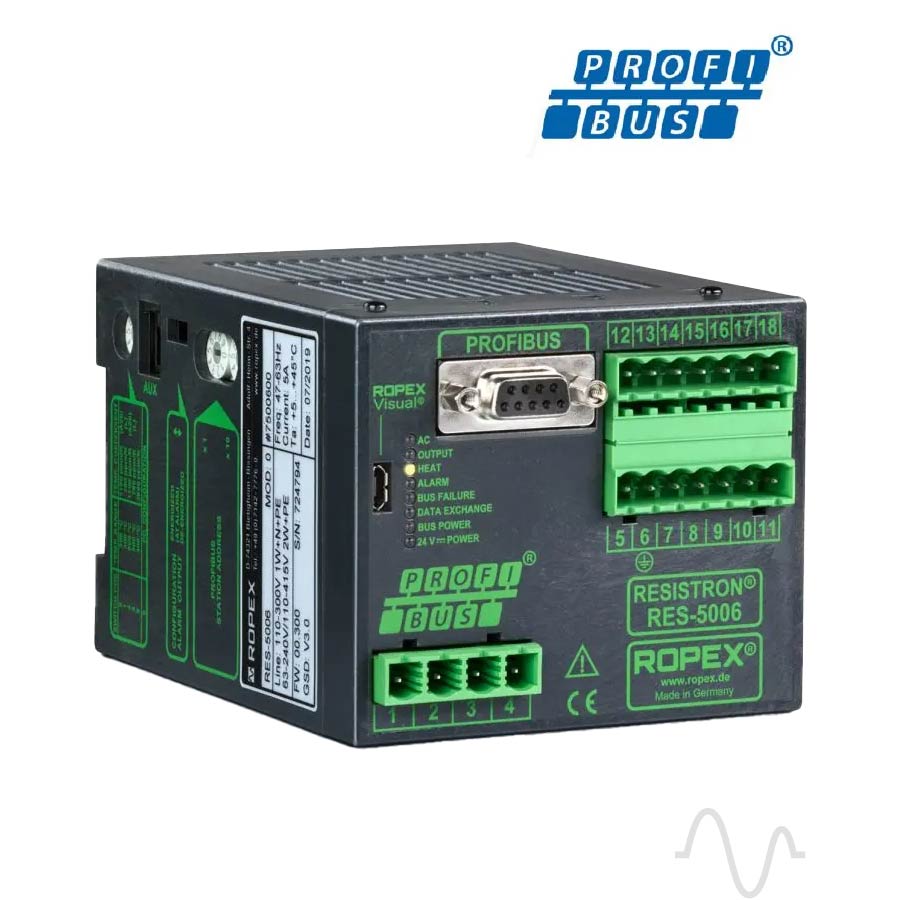

Ropex Resistron RES-5006 Heat Seal Controller
  • Micro-USB interface for ROPEX visual®

  • Automatic zero calibration (AUTOCAL)

  • Automatic optimization (AUTOTUNE)

  • Automatic frequency adjustment

  • Automatic phase angle compensation (AUTOCOMP)

  • Automatic configuration of the secondary voltage and current ranges (AUTORANGE)

ROPEX RES-5006 Features:

  • PROFIBUS interface for controlling all controller functions

  • Wide voltage range for the use of 110…415 VAC

  • Eight channels for administration of various calibration values

  • Booster output (MOD 26) as standard

  • Electrically isolated 0…10 VDC analog output for ACTUAL temperature

  • Selectable heatseal band temperature range (up to 500°C)

  • Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)

  • Fault output and indication (LED) with error diagnostics

  • Ropex RES-5006 (V3) Operating Instructions:Ropex pdf

    For additional downloads, please visit ... click this safe link to add a Ropex tab

ROPEX RES-5006 Part Numbers:

Power Supply 110...415VAC:

  • Ropex Resistron RES-5006/110...415VAC Part No. 7500600

  • Alternate industry names for RES-5006 controllers:

    • RES-5006, RES5006, RES_5006, res-5006, res5006, res_5006
  • Modification MOD... (optional, if required)

    • MOD 01, Art. No. 800001 (amplifier for low voltage)
    • Art. No. 7500600 + 800001 must be ordered

ROPEX Visual® for RES-5006:

ROPEX Visual® enables you to connect directly to the RES-5006 Resistron controller, giving you direct access to controller settings and error codes.

Ropex Visual for RES-5007 Controllers
  • Free Windows PC software.

  • Communication via controller Micro-USB (PC USB to controller USB 2.0 micro-B).

  • Display setpoint and actual temperatures
    in real time.

  • Monitor and record controller operation.

  • Review and edit controller configurable data.

  • Password protected access .

  • ROPEX Visual® Documentation:Ropex pdf
    ROPEX Visual® Software:Ropex pdf

Suitable for use with 5000 and 6000 series RESISTRON/CIRUS temperature controllers with USB port (ROPEX Visual®).

ROPEX Accessories and Modifications:

... available for the Ropex Resistron Heatseal Controllers:

ROPEX RES-5006 Factory Repairs and Upgrades:

We offer a large range of Ropex Resistron RES impulse heatseal temperature control units, to minimize your down time, and eliminate non-compliant repairs.

All Force Global controller repairs are performed by Ropex service technicians.
