ROPEX Resistron RES-5007 UL Listed Controller :

RES-5007 ... the new RES-407 | USA

The ROPEX Resistron RES-5007. The new generation, drop-in-replacement for the RES-407, the controller that has set the standard for impulse heat sealing for the last 20 years. Utilizing microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5007 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers also provide a solution for an extensive range of heating applications:

  • Heat-seal-bands and cutting-wires ... for hermetic sealing, and trimming of flexible films

  • Zebra and intermittent heat-seal-bands ... for skip seals and packaging ventilation

  • Impulse heating tools ... for activation of adhesives used in the bonding of non-thermoplastic materials

  • Flexible or rigid impulse blades ... for scoring, cutting, and bending of thermoplastics

  • Impulse heater coils ... for hot air bonding, and scoring of thermoplastics

  • 2D and 3D contour heat-seal-elements ... for custom shaped heat-sealing, and heat-seal plus cuttings

The ROPEX Resistron RES-5007 contains the following features:

ROPEX RES-5007 Standard Functions:

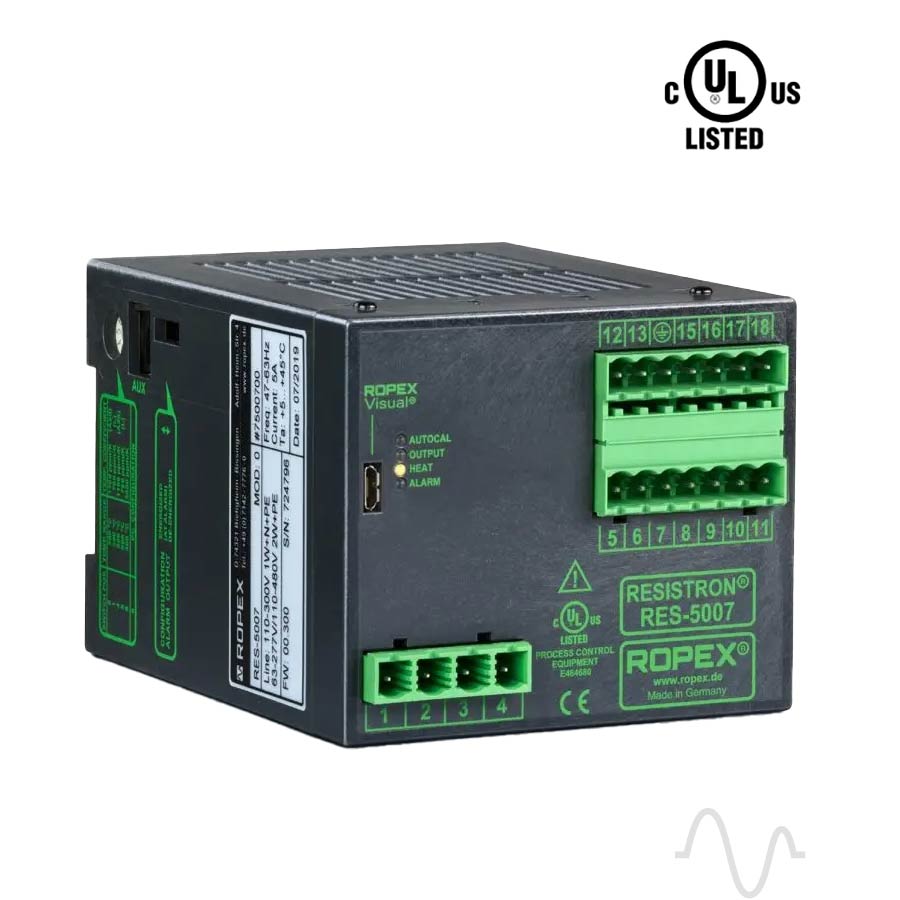

Ropex Resistron RES-5007 Heat Seal Controller
  • Micro-USB interface for ROPEX Visual®

  • Automatic zero calibration (AUTOCAL)

  • Automatic optimization (AUTOTUNE)

  • Automatic frequency adjustment

  • Automatic phase angle compensation (AUTOCOMP)

  • Automatic configuration of the secondary voltage and current ranges (AUTORANGE)

ROPEX RES-5007 Features:

  • PLC interface

  • Electrically isolated 0…10 VDC analog output for ACTUAL temperature

  • Setpoint selection with 0…10 VDC analog input or potentiometer

  • 24 VDC control signals for START, AUTOCAL and RESET

  • Wide voltage range for the use of 110…480 VAC

  • Selectable heatseal band temperature range (up to 500°C)

  • Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)

  • Fault output and indication (LED) with error diagnostics

  • UL certification

  • Ropex RES-5007 UL/CE (V3) Operating Instructions:Ropex pdf
    Ropex RES-407 to RES-5007 Upgrade Instructions:Ropex pdf

    For additional downloads, please visit ... click this safe link to add a Ropex tab

ROPEX RES-5007 Part Numbers:

Power Supply 110...480VAC:

  • Ropex Resistron RES-5007/110...480VAC Part No. 7500700

  • Alternate industry names for RES-5007 controllers:

    • RES-5007, RES5007, RES_5007, res-5007, res5007, res_5007
  • Modification MOD... (optional, if required)

    • MOD 01, Art. No. 800001 (amplifier for low voltage)
    • Art. No. 7500700 + 800001 must be ordered

ROPEX Visual® for RES-5007:

ROPEX Visual® enables you to connect directly to the RES-5007 Resistron controller, giving you direct access to controller settings and error codes.

Ropex Visual for RES-5007 Controllers
  • Free Windows PC software.

  • Communication via controller Micro-USB (PC USB to controller USB 2.0 micro-B).

  • Display setpoint and actual temperatures
    in real time.

  • Monitor and record controller operation.

  • Review and edit controller configurable data.

  • Password protected access .

  • ROPEX Visual® Documentation:Ropex pdf
    ROPEX Visual® Software:Ropex pdf

Suitable for use with 5000 and 6000 series RESISTRON/CIRUS temperature controllers with USB port (ROPEX Visual®).

ROPEX Accessories and Modifications:

... available for the Ropex Resistron Heatseal Controllers:

ROPEX RES-5007 Factory Repairs and Upgrades:

We offer a large range of Ropex Resistron RES impulse heatseal temperature control units, to minimize your down time, and eliminate non-compliant repairs.

All Force Global controller repairs are performed by Ropex service technicians.
