ROPEX Resistron RES-5011 EtherNet/IP UL Listed Controller :

RES-5011 | USA

The ROPEX Resistron RES-5011 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5011 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers also provide a solution for an extensive range of heating applications:

  • Heat-seal-bands and cutting-wires ... for hermetic sealing, and trimming of flexible films

  • Zebra and intermittent heat-seal-bands ... for skip seals and packaging ventilation

  • Impulse heating tools ... for activation of adhesives used in the bonding of non-thermoplastic materials

  • Flexible or rigid impulse blades ... for scoring, cutting, and bending of thermoplastics

  • Impulse heater coils ... for hot air bonding, and scoring of thermoplastics

  • 2D and 3D contour heat-seal-elements ... for custom shaped heat-sealing, and heat-seal plus cuttings

The ROPEX Resistron RES-5011 contains the following features:

ROPEX RES-5011 Features:

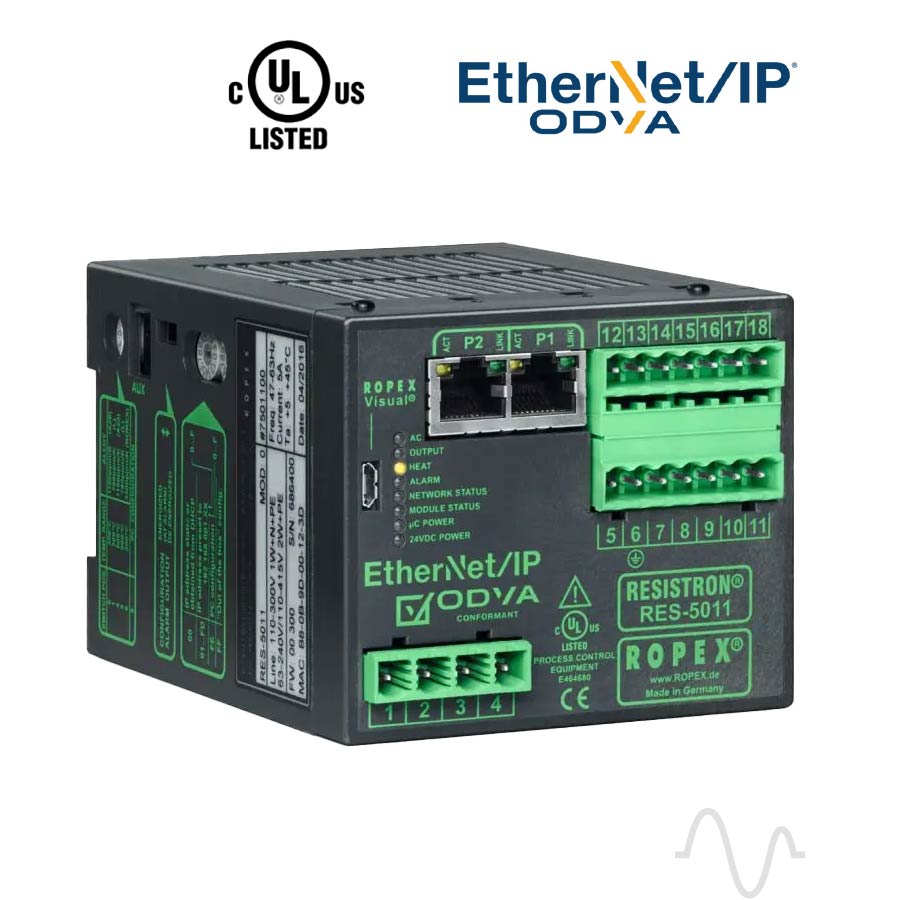

Ropex Resistron RES-5011 Heat Seal Controller
  • µC-Technology

  • UL file E464680

  • Complete control via EtherNet/IP
    interface (2 x RJ-45)

  • Automatic zero calibration (AUTOCAL)

  • Automatic optimization (AUTOTUNE)

  • Automatic configuration of the secondary voltage and current ranges (AUTORANGE)

  • Automatic phase angle compensation (AUTOCOMP)

  • Automatic frequency adjustment

  • Large current and voltage range

  • Alarm function with fault/error diagnostics

  • Booster terminal (MOD 26) as standard

  • 0...10VDC analog output for ACTUAL temperature

  • Selectable heatseal band temperature range (up to 500°C)

  • Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)

  • Ropex RES-5011 UL/CE (V5) Operating Instructions:Ropex pdf
    June 2016 thru August 2019 RES-5011 Operating Instructions:Ropex pdf
    Prior to May 2016 ... RES-5011 Operating Instructions:Ropex pdf
    RES-5011 Replacement Instructions:Ropex pdf

    For additional downloads, please visit ... click this safe link to add a Ropex tab

ROPEX RES-5011 Part Numbers:

Power Supply 115...400VAC:

  • Ropex Resistron RES-5011/115...400VAC Part No. 7501100

  • Alternate industry names for RES-5011 controllers:

    • RES-5011, RES5011, RES_5011, res-5011, res5011, res_5011
  • Modification MOD... (optional, if required)

    • MOD 01, Art. No. 800001 (amplifier for low voltage)
    • Art. No. 7501100 + 800001 must be ordered

Old part numbers for 0-500°C, 115, 230 and 400VAC units (prior to May 2016)

  • Ropex Resistron RES-5011-0-3/115VAC Part No. 7501101
    (replaced by Part No. 7501100)

  • Ropex Resistron RES-5011-0-3/230VAC Part No. 7501102
    (replaced by Part No. 7501100)

  • Ropex Resistron RES-5011-0-3/400VAC Part No. 7501103
    (replaced by Part No. 7501100)

ROPEX Visual® for RES-5011:

ROPEX Visual® enables you to connect directly to the RES-5011 Resistron controller, giving you direct access to controller settings and error codes.

Ropex Visual for RES-5011 Controllers
  • Free Windows PC software.

  • Communication via controller Micro-USB (PC USB to controller USB 2.0 micro-B).

  • Display setpoint and actual temperatures
    in real time.

  • Monitor and record controller operation.

  • Review and edit controller configurable data.

  • Password protected access .

  • ROPEX Visual® Documentation:Ropex pdf
    ROPEX Visual® Software:Ropex pdf

Suitable for use with 5000 and 6000 series RESISTRON/CIRUS temperature controllers with USB port (ROPEX Visual®).

ROPEX Accessories and Modifications:

... available for the Ropex Resistron Heatseal Controllers:

ROPEX RES-5011 Factory Repairs and Upgrades:

We offer a large range of Ropex Resistron RES impulse heatseal temperature control units, to minimize your down time, and eliminate non-compliant repairs.

All Force Global controller repairs are performed by Ropex service technicians.
